K60227 ICE 02

General-Purpose Flexible PVC Insulated Wire (Single Core)

Application

Used for switchboards and control equipment under AC 450/750V.

Features

  • 1

    Rating : 70°C 450 / 750V

  • 2

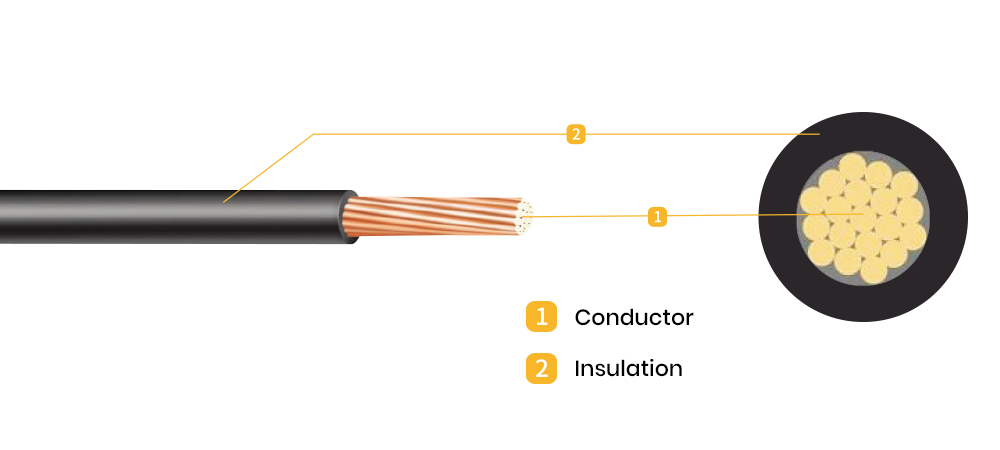

    Construction

    Conductor : Flexible stranded Annealed copper(Class5)

    Insulation : PVC with internal and external durability

  • 3

    Standard : IEC K60227-3

  • 4

    Certification : Korea Testing Certification Institute ( KTC)

Conductor Insulation Max.
Conductor
Resistance
at 20℃
(Ω/km)		 Min.
Insulation
Resistance
at 70℃
(MΩ/km)		 Approx
Weight
(kg/km)		 Packing
Length
(m)
Nominal
Sectional
Area
(mm³)		 Maximum
diameter of
wire
(mm)		 Approx.
Diameter
(mm)		 Thickness
(mm)		 Mean Overall Diameter
Lower limit
(mm)		 Upper limit
(mm)
1.5 0.26 1.6 0.7 2.8 3.4 13.30 0.010 30 200
2.5 0.26 2.1 0.8 3.4 4.1 7.980 0.009 40 200
4.0 0.31 2.6 0.8 3.9 4.8 4.950 0.007 50 100
6.0 0.31 3.6 0.8 4.4 5.3 3.300 0.006 80 100
10 0.41 4.8 1.0 5.7 6.8 1.910 0.0056 130 100
16 0.41 6.0 1.0 6.7 8.1 1.210 0.0046 180 100
25 0.41 7.4 1.2 8.4 10.2 0.780 0.0044 280 100
35 0.41 8.7 1.2 9.7 11.7 0.554 0.0038 370 100
50 0.41 10.4 1.4 11.5 13.9 0.386 0.0037 500 100
70 0.51 12.5 1.4 13.2 16.0 0.272 0.0032 700 100
95 0.51 14.5 1.4 15.1 18.2 0.206 0.0032 970 100
120 0.51 16.2 1.6 16.7 20.2 0.161 0.0029 1,200 100
150 0.51 18.2 1.8 18.6 22.5 0.129 0.0029 1,490 100
180 0.51 20.2 2.0 20.6 24.9 0.106 0.0029 1,850 100
240 0.51 23.3 2.2 23.5 28.4 0.080 0.0028 2,440 100

※ Specifications above are subject to change without notice.
